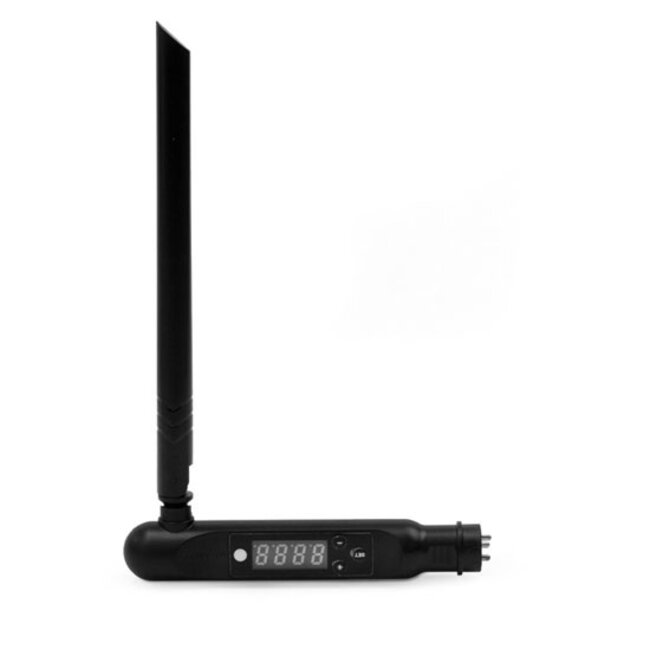

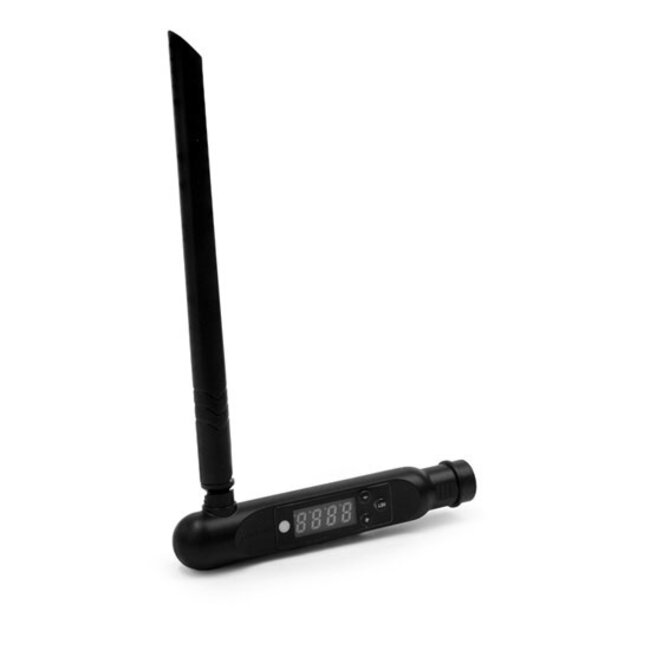

MILIGHT DMX Serie LED Transmitter RGB+CCT

DMX Serie Mi-Light LED Transmitter RGB+CCT

When you purchase this item you will receive:
- 1x DMX Serie Mi-Light LED Transmitter RGB+CCT

---

You can expand this article with:

• DMX Serie LED Controller (Necessary for the functioning of this product when using LED RGB+CCT Strips)
• DMX Serie LED Lamp RGB+CCT 9W
• Mi-Light 4 Zone Remote RBG+CCT
• MiLight WiFi module suitable for iOS and Android

---

Our DMX transmitter can control a maximum of 16 groups of light bulbs or RGB+CCT LED strip controllers simultaneously and wirelessly. Each group of DMX light bulbs or DMX controller contains 5 channels consisting of the colors red, green, blue, warm white and cold white from 0 to 100%.

---

A total of 80 channels can be controlled with one DMX LED transmitter.

---

To operate the LED lamps, use the mixing desk. The DMX LED transmitter is connected directly to the mixer.

---

The DMX Series set is ideal for controlling a large amount of LED lamps, for instance in: clubs, bars, restaurants, museums or events. The application possibilities for the DMX LED Lights Series are endless.

---

Warning ! Remember that you always need a DMX Controller to use the DMX Transmitter with the LED RGB+CCT Strips. This can only be used in combination with DMX512 products, so not with other software.

	Technical specifications
	Turn of via switch	Yes
	Output power	12V / 144W - 24V / 288W
	Protection	IP44
	Frequency	2.4GHZ RF
	Range	Radiographic range 30 meters
	Dimmable	Yes, via Radiographic Remote Control
	Product specifications
	Brand	MiLight
	Memory	Yes, last chosen mode
	Quality mark	CE, ROHS and FCC
	Warranty	5 Years
	Dimensions
	Width	85 mm
	Length	45 mm
	Height	22.5 mm
	Energy consumption
	Static energy consumption	1W
	Output power	12V / 144W - 24V / 288W
	Input voltage	12V / 24V DC
