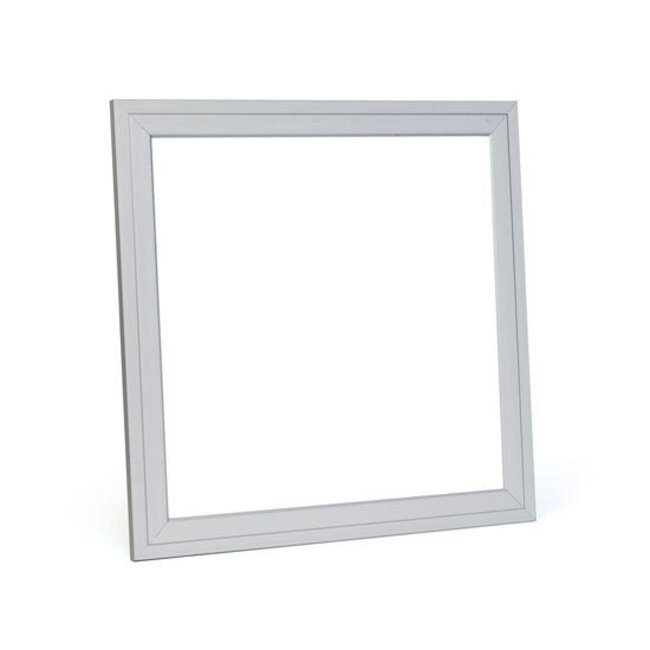

PURPL LED Panel 30x30 3000K Warm White 18W Optionally Dimmable

LED Panel 30x30 3000K Warm White 18W optionally dimmable
420mA

When purchasing this product you will receive:
- 1x LED Panel 30x30 Warm White 18W 3000K Silver frame
- 1x LED Driver

Optional mounting accessories:

• LED Paneel mounting frame systeem
• LED Panel Suspension System

If you want to dim your LED Panel, select one of the following transformer options:

0-10V dimmable power supply:
If you want to be able to dim a panel with a 0-10V dimmable power supply, you need a  0-10V dimmer. This has to be ordered separately and can be found in the category "Accessories". You can connect a maximum of 17 panels to one 0-10V dimmer.

ATTENTION!: The Mi-Light controls do not work with the 0-10V transformer!

---

	Technical specifications
	Turn on via switch	Yes
	LED Life expectancy	50.000 hours
	Light colour	Warm White
	Kelvin	3000K
	Dimmable	Optional
	Protection	IP41
	Luminous efficiency	70 LM/W
	Lumen	1260 LM
	Angle of light	120°
	CRI	>80
	Operating temperature	-20°C - +50°C
	Mounting	Recessed
	Product specifications
	Brand	LS LED
	Housing material	Aluminium
	Housing colour	Silver
	Optical cover	PMMA (acrylic glass)
	LED Type	SMD 4014
	Certifications	CE, ROHS & FCC
	Power supply included	Yes
	Warranty	5 years
	Dimensions
	Width	295 mm
	Length	295 mm
	Heigth	7 mm
	Energy usage
	Power in Watts	18W
	Voltage	230V
	Input Current	420mA
	Powerfactor	0.95

Advice: If you want to use several panels in one room, we recommend ordering them in one order. We cannot guarantee that separate orders will have the same light colour. It is therefore advisable to order additional replacement panels. We can also not guarantee that the light of LED Panels of the same colour temperature, but of different sizes is 100% identical.

Warranty: Do you have problems with a panel? Click here for suggested solutions and the procedure for warranty cases.
