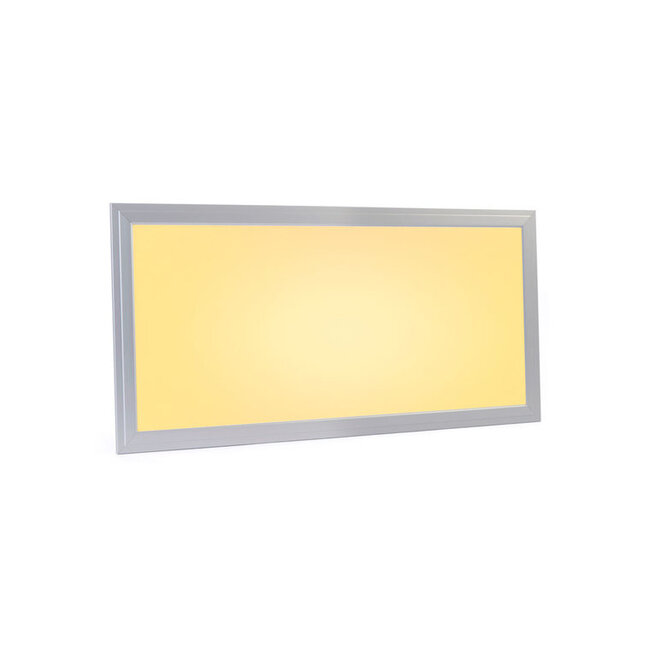

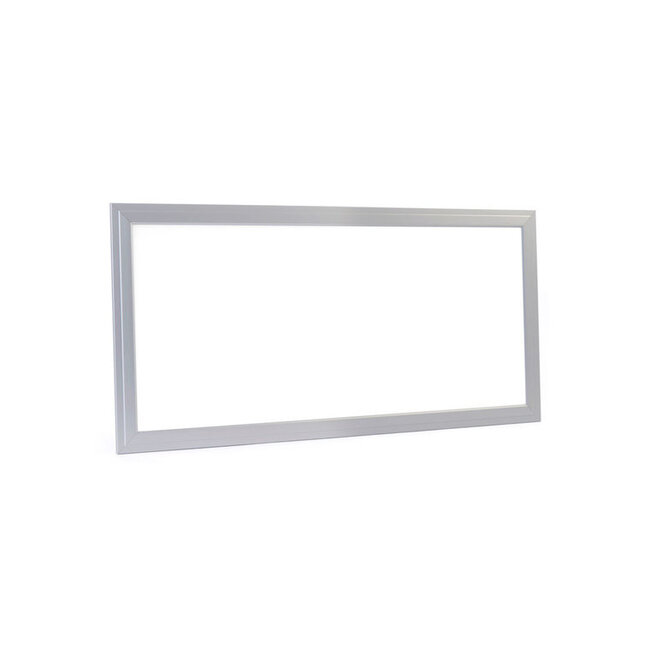

LED Panel 295x595mm | 3000K Warm White | 24W | 85 LM/Watt | Silver Frame | Transformer incl. | 5 year Warranty Read more..
When purchasing this product you will receive:
- 1x LED Panel 30x30 cm warm white 20 watt 3000K
- 1x LED driver.
Optional mounting accessories:
If you want to dim your LED Panel, select one of the following transformer options:
0-10V dimmable power supply:
If you want to be able to dim a panel with a 0-10V dimmable power supply, you need a 0-10V dimmer. This has to be ordered separately and can be found in the category "Accessories". You can connect a maximum of 17 panels to one 0-10V dimmer.
2.4GHZ RF / WiFi wireless single color led panel controller + Meanwell driver:
With a radio range of 30 meters or via WiFi you have the possibility to control 4 different zones with one or more panels. Each controller sends the received signal back to other controllers within the range of 30 meters. A separate RF / WiFi controller and Meanwell driver is required for each LED panel. It is not possible to connect multiple panels to 1 controller or driver.
ATTENTION!: The RF remote control, RF wall control or a WiFi module iBox must be purchased separately in order to be able to actually operate the panels. The Mi-Light controls do not work with the 0-10V transformer!
Do you already have single-colored LED panels from our webshop and want to switch to the new dimming system? You can order the RF / WiFi controller + Meanwell driver here
Technical specifications | ||
---|---|---|
![]() | Turn on via switch | Yes |
![]() | LED Life expectancy | 50.000 hours |
![]() | Light colour | Warm White |
![]() | Kelvin | 3000K |
![]() | Dimmable | Optional |
![]() | Protection | IP41 |
![]() | Luminous efficiency | 85 LM/W |
![]() | Lumen | 2040 LM |
![]() | Angle of light | 120° |
![]() | CRI | >80 |
![]() | Operating Temperature | -20°C - +50°C |
![]() | Mounting | Recessed |
Product specifications | ||
![]() | Brand | LS LED |
![]() | Housing material | Aluminium |
![]() | Housing colour | Silver |
![]() | Optical cover | PMMA (acrylic glass) |
![]() | LED Type | SMD 4014 |
![]() | Certifications | CE, ROHS & FCC |
![]() | Power supply included | Yes |
![]() | Warranty | 5 years |
Dimensions | ||
![]() | Width | 295 mm |
![]() | Length | 595 mm |
![]() | Heigth | 9 mm |
Energy usage | ||
![]() | Power in Watts | 24W |
![]() | Voltage | 230V |
![]() | Powerfactor | 0.95 |
LED Panel 295x595mm | 3000K Warm White | 24W | 85 LM/Watt | Silver Frame | Transformer incl. | 5 yea..
