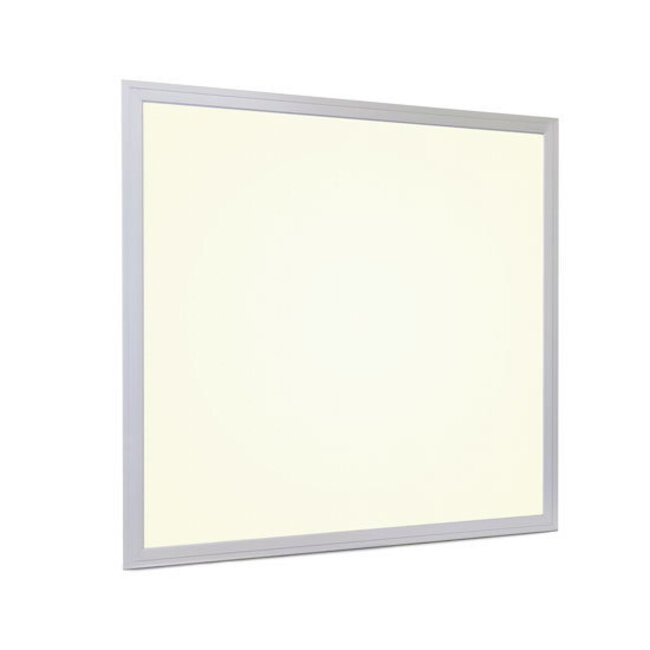

PURPL LED Panel 60x60 UGR19 4000K 36W Optionally dimmable

LED Panel 60x60 UGR19 4000K 36W Optionally dimmable
800mA

Optional mounting accessories:

• LED Panel mounting frame systeem
• LED Panel Suspension System

The microprismatic surface of this panel generates a low glare of UGR<19. This panel is therefore ideally suited for computer workstations. Here you can find more information about the Unified Glare Rating (UGR).

If you want to dim your LED Panel, select one of the following transformer options:

1-10V dimmable power supply: If you want to be able to dim a panel with a 0-10V dimmable power supply, you need a 0-10V dimmer. This has to be ordered separately and can be found in the category "Accessories". You can connect a maximum of 17 panels to one 0-10V dimmer.

2.4GHZ RF / WiFi wireless single color led panel controller + Meanwell driver: With a radio range of 30 meters or via WiFi you have the possibility to control 4 different zones with one or more panels. Each controller sends the received signal back to other controllers within the range of 30 meters. A separate RF / WiFi controller and Meanwell driver is required for each LED panel. It is not possible to connect multiple panels to 1 controller or driver.
ATTENTION!: The RF remote control, RF wall control or a WiFi module iBox must be purchased separately in order to be able to actually operate the panels. The Mi-Light controls do not work with the 0-10V transformer!

Do you already have single-colored LED panels from our webshop and want to switch to the new dimming system? You can order the RF / WiFi controller + Meanwell driver here

	Technical specifications
	Turn on via switch	Yes
	LED Life expectancy	50.000 hours
	Light colour	Natural White
	Kelvin	4000K - 4500K
	Dimmable	Optional
	Protection	IP41
	Luminous efficiency	115 LM/W
	Lumen	2070 LM
	Angle of light	120°
	CRI	>80
	Operating Temperature	-20°C - +50°C
	Mounting	Recessed
	Product specifications
	Brand	LS LED
	Housing material	Aluminium

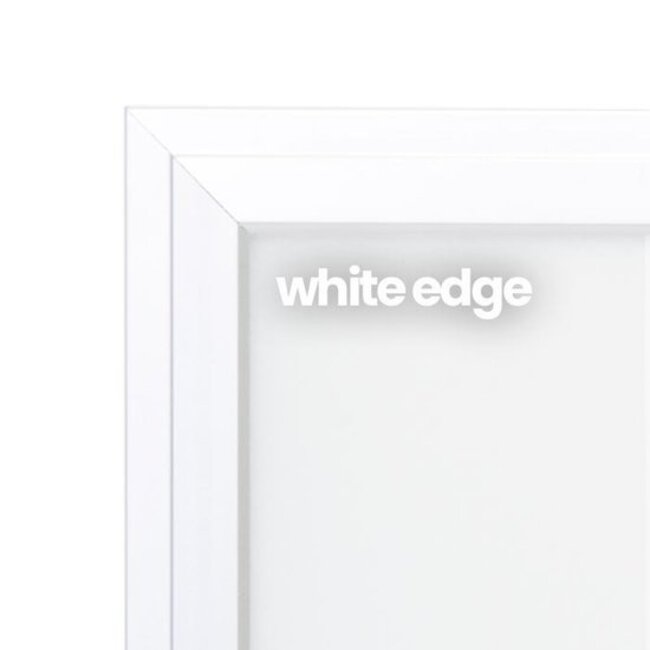

	Housing colour	White
	Optical cover	PMMA (acrylic glass)
	LED Type	SMD 4014
	Certifications	CE, ROHS & FCC
	Power supply included	Yes
	Warranty	5 years
	Dimensions
	Width	595 mm
	Length	595 mm
	Heigth	9 mm
	Energy usage
	Power in Watts	36W
	Voltage	230V
	Input Current	800mA
	Powerfactor	0.95

Advice: If you want to use several panels in one room, we recommend ordering them in one order. We cannot guarantee that separate orders will have the same light colour. It is therefore advisable to order additional replacement panels. We can also not guarantee that the light of LED Panels of the same colour temperature, but of different sizes is 100% identical.

Warranty: Do you have problems with a panel? Click here for suggested solutions and the procedure for warranty cases.
