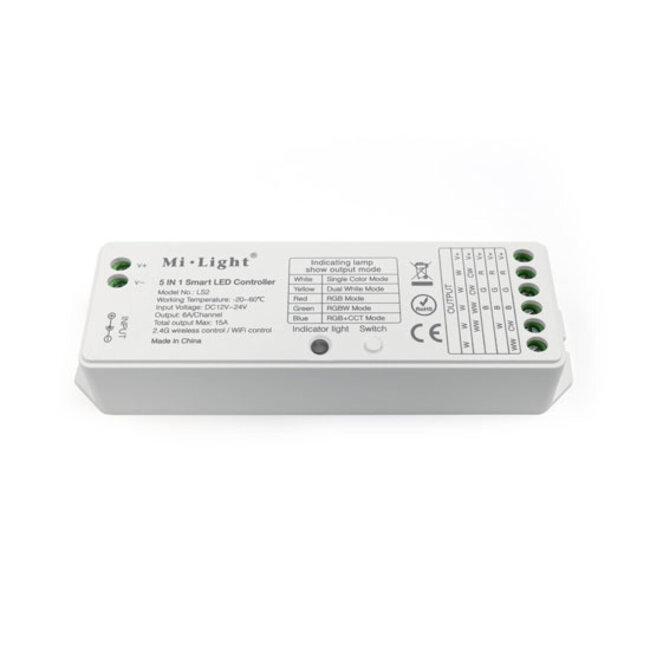

Mi-Light Controller 8 Zone LS2 | 5-in-1 | for all types of LED Strips (White, RGB, RGBW, RGB+CCT) Read more..
When you purchase this item you will receive:
- 1x Mi-Light Controller LS2 5-in-1 8 Zone
You still need an 8 zone remote control or a WiFi module:
This controller works with both unicolor, RGB, RGBW and RGB + CCT (rgbww) LED Strips. The controller has a range of 30 meters, thanks to the 2.4GHz wireless signal.
Technical specifications | ||
---|---|---|
![]() | Model number | LS2 |
![]() | Input voltage | 12-24V DC |
![]() | Output per channel | max. 6A |
![]() | Output controller total | max. 15A |
![]() | Control | 2.4Ghz (RF) or WIFI |
![]() | Output power | 432 W |
![]() | Output current | 6a (per channel) total 15Ampere |
![]() | Send / receive frequency | 2.4GHZ |
![]() | Send / receive distance | 25/30 meters |
![]() | Static energy consumption | 1W |
![]() | Warranty | 2 years |
Dimensions | ||
![]() | Length | 52 mm |
![]() | Heigth | 27 mm |
![]() | Width | 95 mm |

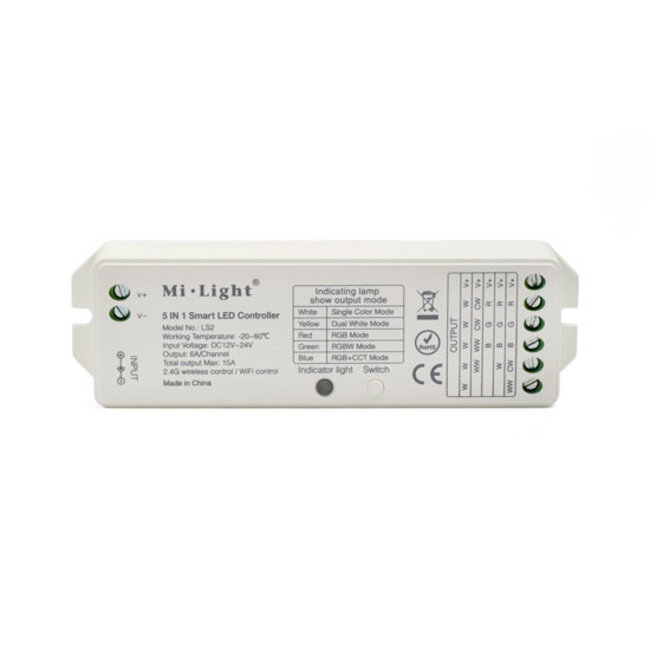

The controller has an indicator light which indicates which mode has been selected for operation.
The mode can be changed with a push button on top of the controller.
Mi-Light Controller 8 Zone LS2 | 5-in-1 | for all types of LED Strips (White, RGB, RGBW, RGB+CCT)
