MILIGHT Mi-Light LED Panel 4 Zone Controller Dimmable Driver 42V 1400mA
€28,92€34,99Excl. taxIncl. tax
In stock
Mi-Light LED Panel 4 Zone Controller | Dimmable Driver | 42V | 1400mA | Mean Well power supply incl. Read more..
Best quality & 5 year warranty
Customer rating of 8,8 with 25.000 customer reviews
30 day return
Free shipping within Europe*
Product description
Mi-Light LED Panel 4 Zone Controller Dimmable Driver 42V 1400mA

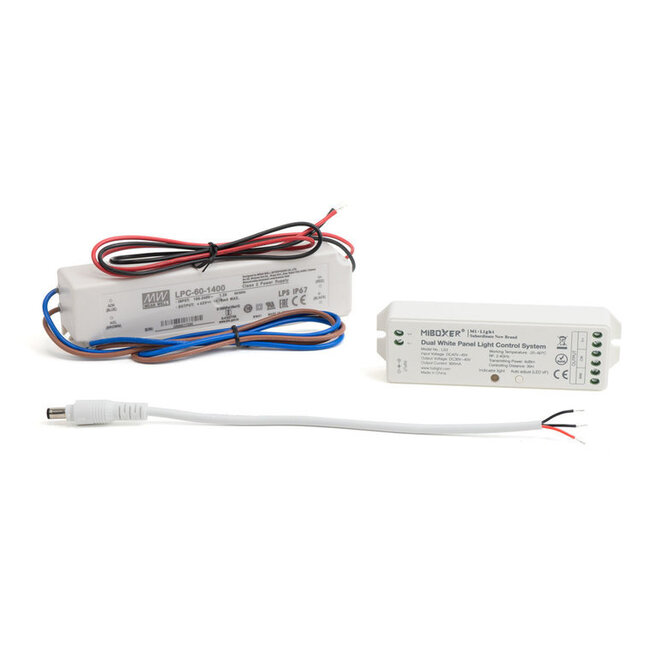

When purchasing this product you will receive:- 1x Mi-Light LED Panel 4 Zone Controller Dimmable Driver 42V 1400mA

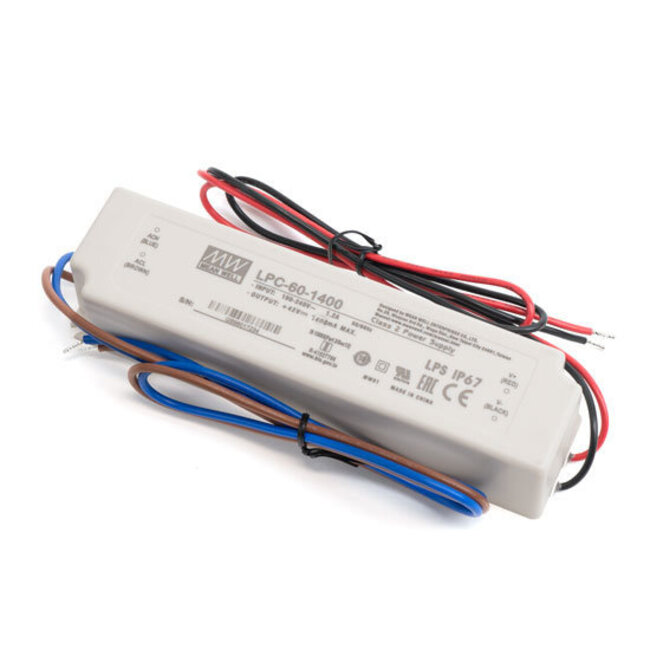

- 1x Mean Well power supply
Please note: To operate this controller, you need one of the products below to operate it.
These products must be ordered separately:
The latest 2.4GHZ RF wireless white led panel dimmer controller / dimmer. Suitable for dimming LED panels. With a milight wifi module it is also possible to control the LED panels with an iPhone or Android device by means of an app. If you want to operate separate rooms separately, you need a dimmer controller for each room. (maximum 4 zones per remote control)
Suitable for: 60x60, 30x120 and 62x62 High Lumen LED Panels.
Please note: not suitable for 30x30, 30x60, 62x62 Standard Lumen and 60x120 LED Panels.
| Specifications MiLight LS3 4 zone controller / dimmer | ||
|---|---|---|
 | Model | LS3 |
| Working temperature | -20 ~ 60 ℃ |
| Connection | Common Anode |
| Input voltage | DC42V ~ 45V |
| Output voltage | DC30V ~ 40V |
| Output current | 900mA |
| Control Distance | 30 m |
| Dimensions MiLight LS3 4 zone controller / dimmer | ||
| Length | 112 mm |
| Width | 38 mm |
| Heigth | 28 mm |
| Specifications Meanwell power supply | ||
| Dimmable | Yes |
| IP value | IP67 |
| Output current | 1400mA |
| Voltage IN | 100-240V 50 / 60Hz 1.2A |
| Voltage OFF | 3 ~ 42V |
| Max. power | 58.8W |
| Working temperature | -30 ~ +70 |
| Storage humidity | 20 ~ 90% |
| Humidity | -40 ~ +80, 10 ~ 95% RH |
| Dimensions Meanwell power supply | ||
| Length | 145 mm |
| Width | 42 mm |
| Heigth | 29 mm |
